Factory fresh Down Imaging pics from Humminbird

  • jhalfen
    Posts: 4179
    October 1, 2009 at 12:53 am #1294765

    I’m starting to receive a little more information about Humminbird’s Down Imaging feature, to be added to many of their industry-leading sonar/GPS combos in 2010.

    Here are a few screen captures that you’ll have a hard time finding anywhere else. These were all taken in a deep reservoir down south.

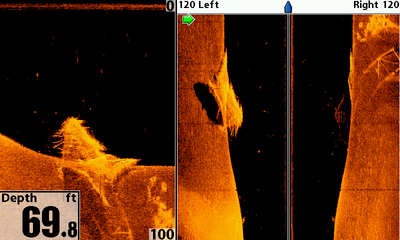

    First, a collapsed bridge, shown in split screen mode with Down Imaging on the left and Side Imaging on the right.

    jhalfen
    Posts: 4179
    October 1, 2009 at 12:54 am #507121

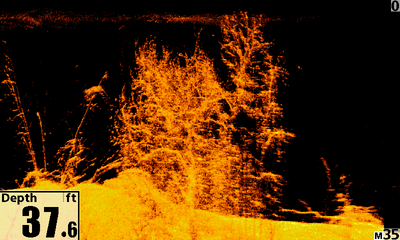

    Next, the first of a few flooded trees that show up nicely in Down Imaging. Check out the detail of the branches.

    jhalfen
    Posts: 4179
    October 1, 2009 at 12:55 am #489778

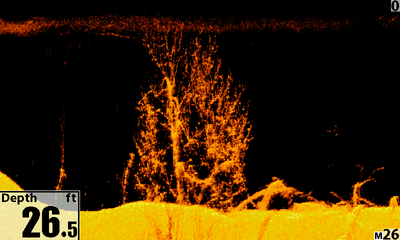

    Here’s one standing tree with a few downed trees nearby.

    jhalfen
    Posts: 4179
    October 1, 2009 at 12:57 am #489760

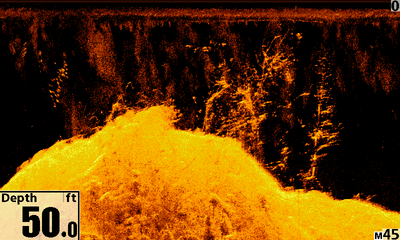

    This one is a hump decorated by a few scattered trees. Think a guy could find any crappies in there??

    absolute2ks
    Chippewa Falls, WI
    Posts: 674
    October 1, 2009 at 1:39 am #509382

    Is this the brown screen or something new for 2010

    jhalfen
    Posts: 4179
    October 1, 2009 at 2:38 am #518691

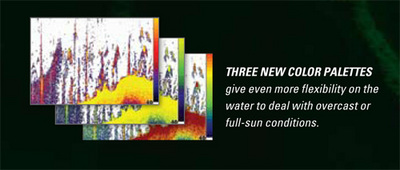

    2Ks, there are three new color palettes for 2010, which will come standard from the factory for new models and are also part of the free software updates available from the Humminbird website on January 1.

    These images were collected using the new amber color palette.

    Joe Scegura
    Alexandria MN
    Posts: 2748
    October 1, 2009 at 2:40 am #518715

    Very cool Jason! It’s hard to not think about Humingbird when I see over and over all the cool stuff it can do! Great job on keeping us up to date

    smackem
    Iowa Marshall Co
    Posts: 956
    October 1, 2009 at 2:02 pm #513210

    Couldn’t wait to get online this morning to see if Jason had more great news for us. Well he sure did!! Ole Mark here is going to make a switch and become a birdman this month

    jhalfen
    Posts: 4179
    October 1, 2009 at 2:13 pm #513214

    I’m not done yet

    The next couple of weeks will be an exciting period of time to be a Humminbird user or future user!

    whittsend
    Posts: 2389
    October 1, 2009 at 2:59 pm #512975

    Quote:

    I’m not done yet

    The next couple of weeks will be an exciting period of time to be a Humminbird user or future user!

    OH the suspense!!!!

    Keep it up Jason, Love to see those new images! That amber color looks sweet … Down imaging will be such a nice add on – fo’ sho’!

    Whitt
