Can you identify this part?

  • longerbass
    Posts: 15
    May 18, 2010 at 11:53 am #1316505

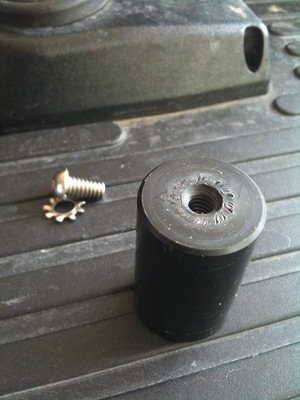

    I found this part at the bow of my Ranger Z520 (laying on the front deck near the trolling motor). Does anyone know what it is and where it goes?

    Note: The trolling motor is a Minnkota Fortrex.

    – Thanks, Brad

    trumar
    Rochester, Mn
    Posts: 5967
    May 18, 2010 at 12:10 pm #872683

    I am not familiar with the Minnkota Fortrex,but it does look like a rubber stop of some sort

    looking at the parts break down I dont see that part tho. see link. it may take a bit to load..fortrex

    shughes
    kasson mn.
    Posts: 69
    May 18, 2010 at 12:19 pm #872685

    I just went out and took alook at my fortrex and didn’t see anything like that on it

    longerbass
    Posts: 15
    May 18, 2010 at 12:23 pm #872686

    It looks like its part 730 on the schematic “inner arm spacer”. Thank you!

    trumar
    Rochester, Mn
    Posts: 5967
    May 18, 2010 at 12:30 pm #872689

    Quote:

    It looks like its part 730 on the schematic “inner arm spacer”. Thank you!

    Yes it could be part numbers 730,735 and 760

    walleyejoe
    Litchfield, MN
    Posts: 463
    May 18, 2010 at 2:13 pm #872713

    That my good fella is what they would refer to as a “Thing-a-ma-bob”…Sorry man no clue

    cpetey
    Onalaska, Wi
    Posts: 1193
    May 18, 2010 at 2:46 pm #872725

    Quote:

    That my good fella is what they would refer to as a “Thing-a-ma-bob”…Sorry man no clue

    I always thought it was a “Thing-a-ma-jig for a Which-a-ma-callit.”

    rkd-jim
    Fountain City, WI.
    Posts: 1606
    May 18, 2010 at 6:39 pm #872799

    Quote:

    Quote:

    That my good fella is what they would refer to as a “Thing-a-ma-bob”…Sorry man no clue

    I always thought it was a “Thing-a-ma-jig for a Which-a-ma-callit.”

    NO!!!! That is the “do-hicky” that holds the “thing-a-ma-jig” in place on the “thing-a-ma-bob”. Sorry too……I got overcome
