Help finding Suzuki 9.9 fuse

  • Johnie Birkel
    South metro
    Posts: 291
    June 20, 2018 at 7:56 pm #1781524

    I can’t get the starter to “click” on my ~2010 df9.9 carb model. I have talked to a few people and have a wire diagram showing there should be an inline fuse on the starter wire to check first. I can’t for the life of me find this and fuse and could use some ideas. I have pulled the c type that controls the trim tilt and that is fine.
    Thanks in advance.

    Attachments:

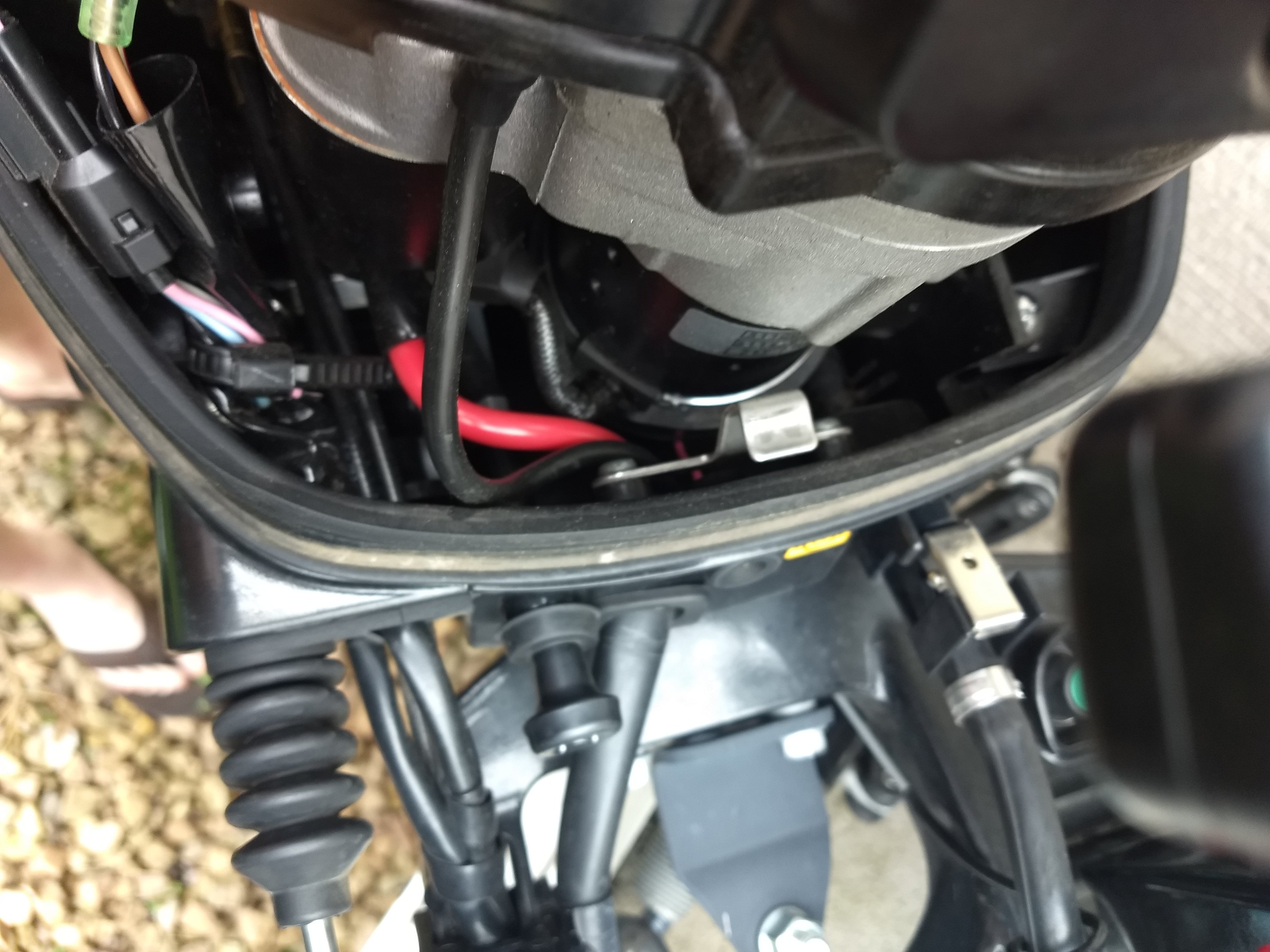

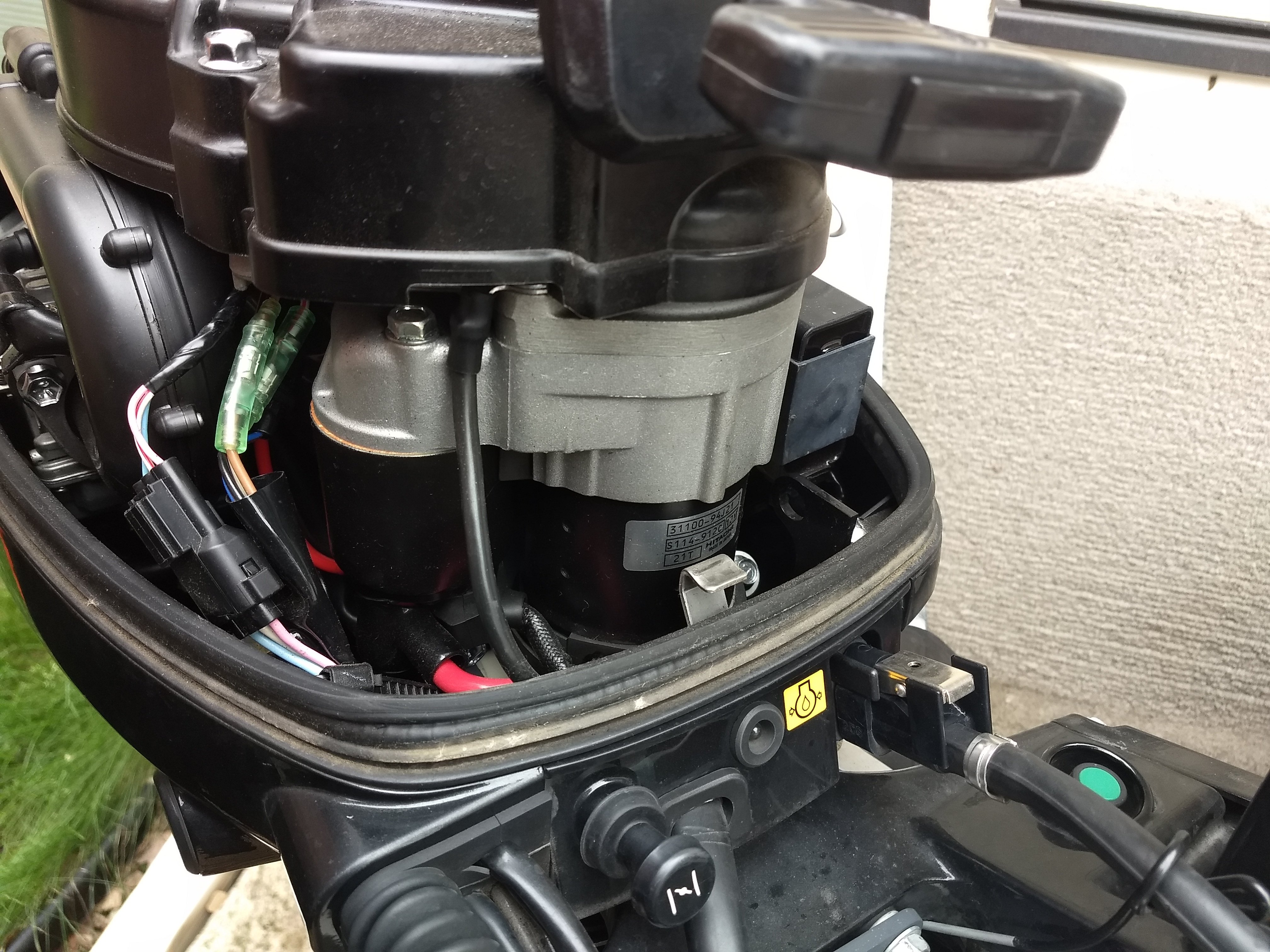

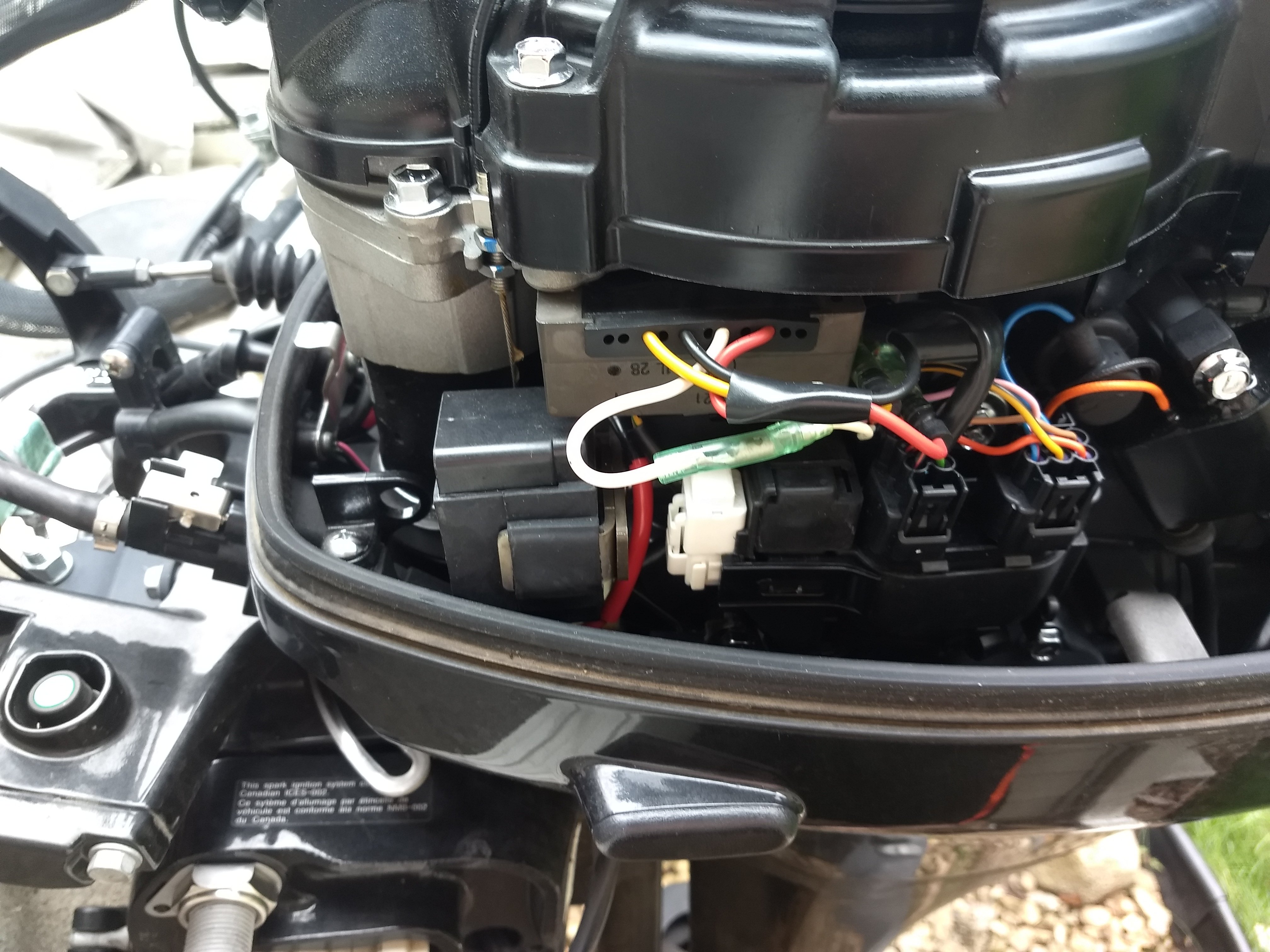

    1. IMG_20180620_181532118.jpg

    2. IMG_20180620_181537387.jpg

    3. IMG_20180620_181544775.jpg

    munchy
    NULL
    Posts: 4668
    June 21, 2018 at 7:34 pm #1781756

    Should just be an in-line fuse, typically black in color that pulls apart. Kind of looks like a butt splice crimp connector.

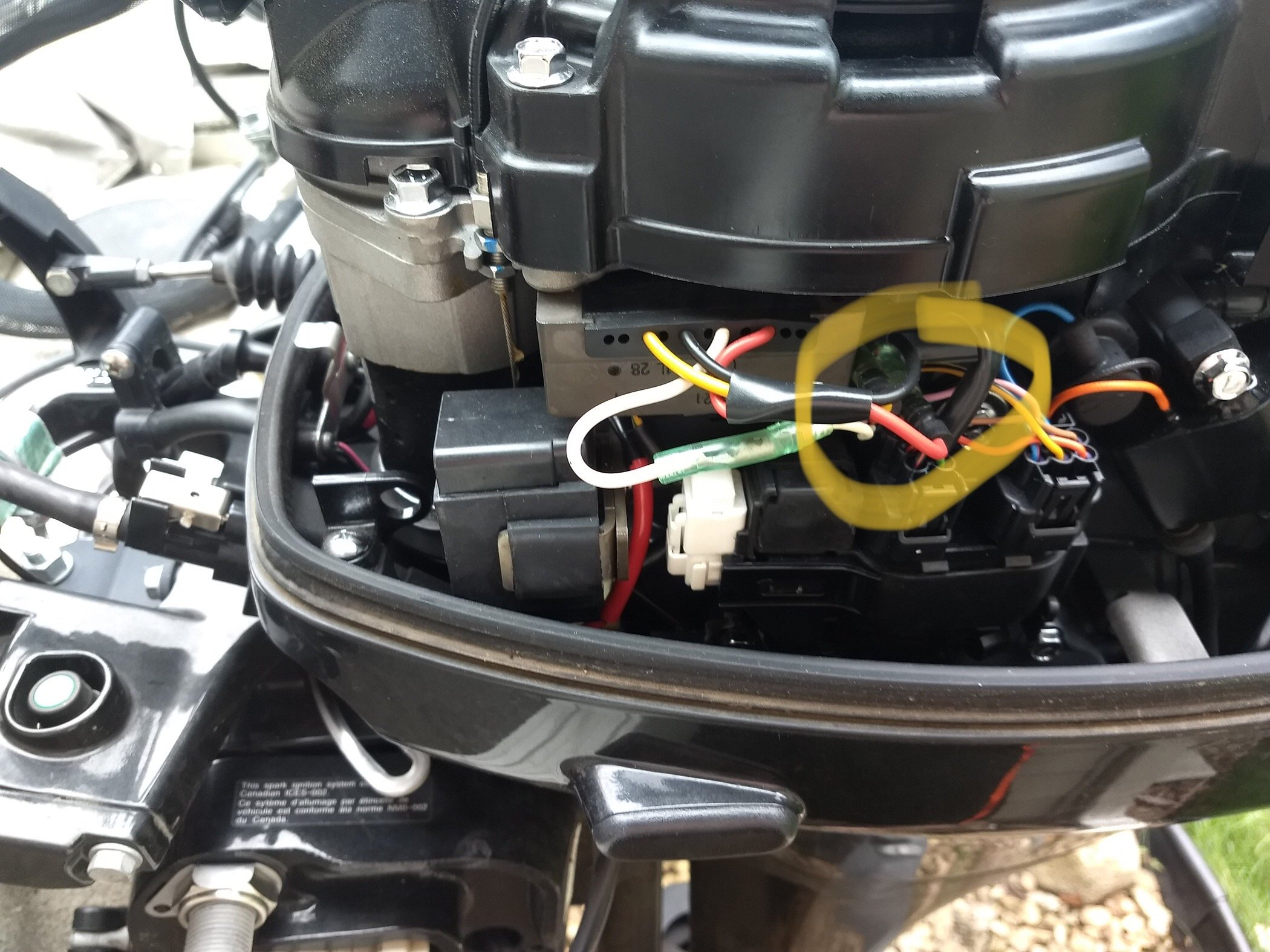

    Check these wires

    Attachments:

    1. 5E25A2B0-F038-45D8-97A4-7D8F0158F4EE.jpeg
