I am looking at getting a new Minnkota Terrova, how well does the US2 transducer work with your depth finder?
IDO » Forums » Fishing Forums » Toys for Big Boys » Outdoor Gear Forum » Minnkota US2
Minnkota US2
-
October 29, 2010 at 2:37 pm #906874
I know I am highly dissatisfied with the US2 on my Powerdrive. I am seriously considering mounting the transom transducer on the TM.
October 29, 2010 at 2:52 pm #906883we have one on our maxum and it works just fine. no problems at all. its kinda nice not having all the wiring on the trolling motor itself. i wouldnt get a trolling motor without it.
October 29, 2010 at 2:59 pm #906884Quote:
What’s it doing Wade?
I don’t think it’s as detailed as it could be with the US2 transducer and I’m getting a lot of interference despite putting in the interference kit sent to me by HB. I’ve both the choke for the transducer cable and the power cable.

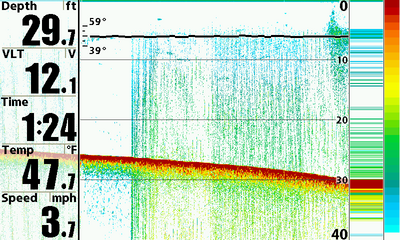

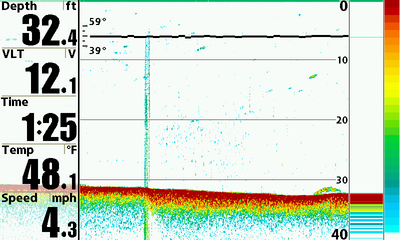

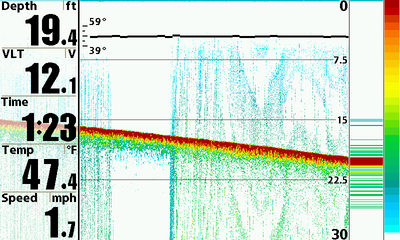

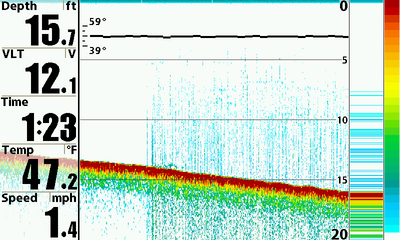

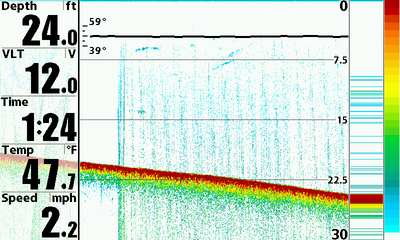

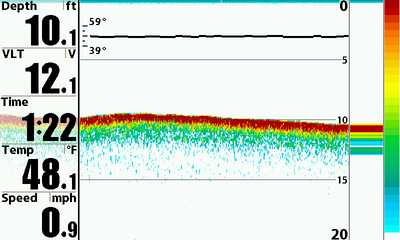

The first pic is a TM setting of “0”. The rest progress at various settings until I’m at max power (last image).
October 29, 2010 at 3:05 pm #906886Works great on my Minnkota Maxum with either the Humminbird or Lowrance unit hooked up. I wouldn’t be without it.
October 29, 2010 at 3:07 pm #906887I’m running a x67c on a 2010 terrova and the graph is very crisp and clear at all times. The graph is powered by my starting battery.
After running a transducer cable down my old powerdrive I will say that having US2 is much, much nicer.
Chris
big_head_basherPosts: 268October 29, 2010 at 4:05 pm #906894mine’s broke had to wire a transducer to the bottom. over a hundred bucks to fix it with labor and all.
October 30, 2010 at 2:06 am #906976I have the Terrova. It works fine with my Lowrance unit. However it did go out on me this past summer. Local Serv Ctr replaced it and it works fine again. Serv Ctr told me there is a 3 year warr’y on the whole unit. I wouldn’t own a bow mount w/o the built in ‘ducer.
GregoryOctober 30, 2010 at 2:49 am #906982I have 3 friends with HB units on theirs all have issues, all with Lowrance work great….
October 30, 2010 at 11:54 pm #907055Currently I have a Lowrance up front and will be switching it over to HBird. Seems the Hbirds are having an issue with US2 Any body understand why this is happening with Hbird`s?
November 1, 2010 at 3:06 pm #907251Nope, but I find it interesting that they own/owned Hummingbird, yet I hear they don’t work the best with birds, can’t say for sure works great with my Lowrance 332.
