My humminbird

  • chappy
    Participant
    Hastings, MN
    Posts: 4796
    #2126042

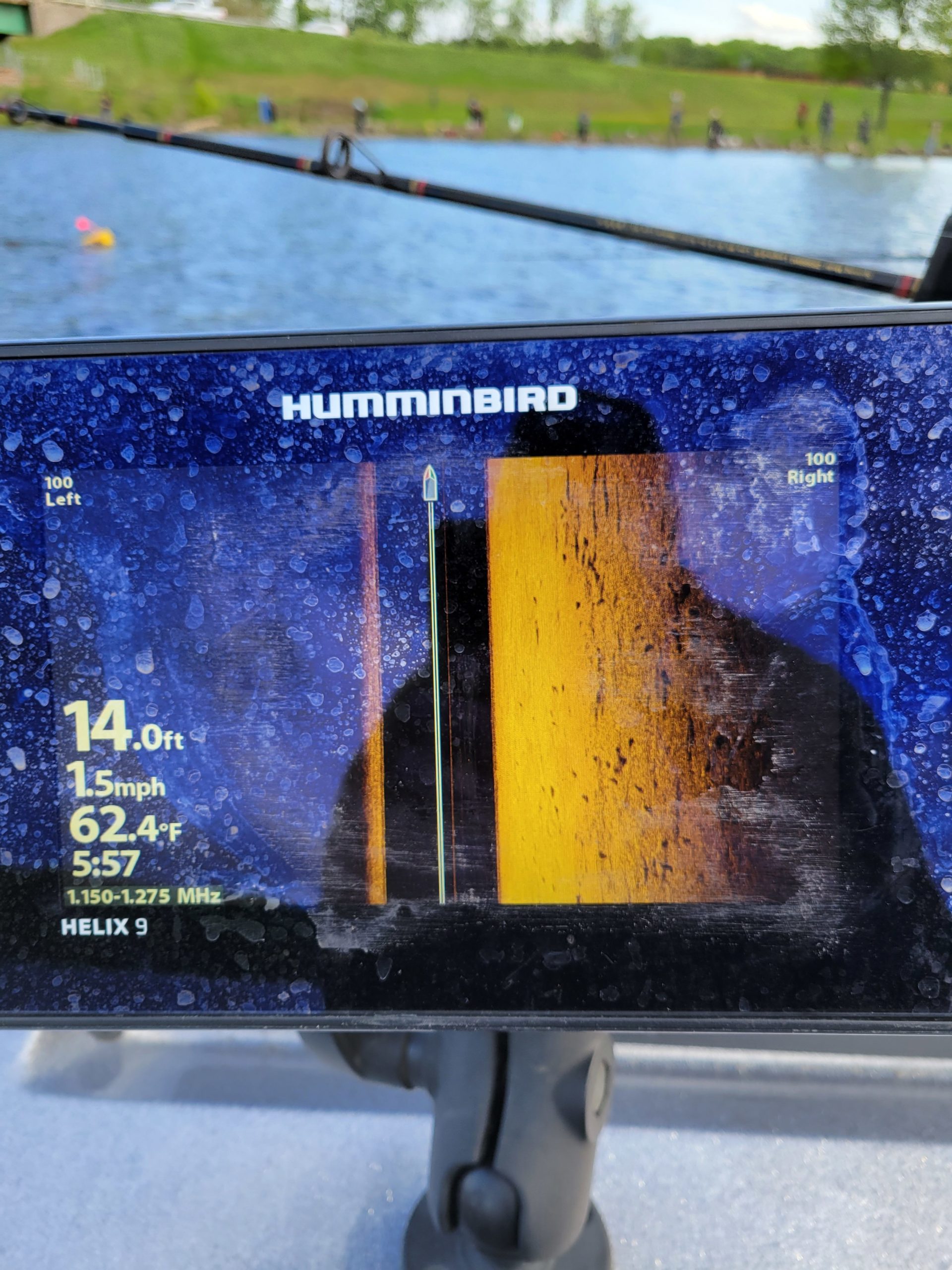

    Has anyone had this issue with thier side scan? 1/2 is good other 1/2 is dark. I can get it to color, but have to turn the contrast up so high it messes up the good side. New transducer, absolutley level, amd not blocked view. I also did a factory reset…im at a loss….

    Attachments:
    1. 20220520_175754-scaled.jpg

    Matthew Sandys
    Participant
    Posts: 248
    #2126047

    Try tilting your motor up. Some times it will get blocked by the lower unit. My old boat had this issue.

    chappy
    Participant
    Hastings, MN
    Posts: 4796
    #2126048

    I did. Its out the other side away from the motor.

    chappy
    Participant
    Hastings, MN
    Posts: 4796
    #2126056

    I tried lowering it this am…we’ll see if it makes a differemce…

    Smellson
    Participant
    Posts: 268
    #2126059

    New transducer? Did it do the same thing with the old transducer?

    Tristan Reding
    Participant
    Posts: 3
    #2126112

    Mine did this last season was, told by the dealer that a crystal went out on one side. They sent a new transducer and it fixed the issue

    chappy
    Participant
    Hastings, MN
    Posts: 4796
    #2126191

    I have a email in to Humminbird now…See what they say…Like I said, I replaced it last fall when I had the issue…

    jorgea
    Participant
    Posts: 4
    #2127033

    Yeah, it’s probably just a bad transducer that was sent to you.

    Francis K
    Participant
    Champlin, MN
    Posts: 814
    #2127036

    Yeah, it’s probably just a bad transducer that was sent to you.

    Yes, but not always…

    I had the same issue and Humminbird sent me a new ducer. That didn’t fix the problem so they had me send the head in and was back to me in 5 business days and its been flawless since.

    Erik Swenson
    Participant
    Posts: 207
    #2127054

    Sometimes your cable works loose in the back of the head unit too…

    I’ve thought my SI when out on one side too and I reached around to find that the transducer cable plug had just slightly backed out. Pushed it back in and watched the image clear up.

    Hope that’s all it was for you chappy.

    HMoshier
    Participant
    Posts: 78
    #2127132

    This happened on my Helix 10. Multiple transducers, same issue. It’s in the head unit. It works fine networked to my Helix 9 (which is connected to the transducer) so i haven’t sent to back to HB for repairs yet). Some threads online say it’s the mother board that needs to be replaced.

    chappy
    Participant
    Hastings, MN
    Posts: 4796
    #2128339

    Did you get the same head back? They told me to sed mine in so It supposedly got tee Thursday.

    marineman
    Participant
    Posts: 97
    #2128569

    I had a different repair needed (Water behind the screen) but got my same head unit back.

    No issues at all with the repair from Humminbird.

    chappy
    Participant
    Hastings, MN
    Posts: 4796
    #2129547

    was’nt transducer…Same transducer different head, now all better..
