In line fuse for trolling motor

  • Avatar of drifter295 drifter295
    Participant
    Posts: 379
    #1237958

    Speaking with a buddy of mine last night as I was setting up my new trolling motor, he says…you need to put an in line fuse on your positive cable line before you plug that in. My reply, I’ve never used one before…but it got me thinking, do I need one? I know it’s a good idea to have one close to the positive lead as close to the batteries as possible, but has anyone put an inline fuse on the positive wire of the trolling motor that connects by plug to your boat?

    avatar Hot Runr Guy
    Participant
    Posts: 436
    #868111

    as long as you’ve got a fuse or breaker on the positive line at the battery, there is no good reason for a 2nd fuse, on the same line, at the plug. Ask him if his toaster has a fuse on the 110V plug, or does he rely on the main fuse/breaker panel?
    HRG

    avatar gmblum
    Participant
    Posts: 2,593
    #868125

    You only need one close to the battery. Myself I would rather have a breaker, because you only have to reset it. Unless you have a problem with your wireing or the motor you can keep fishing.

    The reason you want it close to the battery is that if you have a problem with the wireing it is more than likely to be past the fuse or breaker. If the problem is before the interupt you could have serious trouble…

    Avatar of scotte scotte
    Participant
    Posts: 19
    #868164

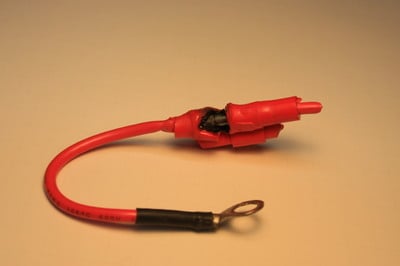

    my terrova had a inline fuse holder that burnt up a week ago. it now has a 60 amp circuit breaker.

    Avatar of carroll58 carroll58
    Participant
    Posts: 1,753
    #868362

    Another Tip for Wiring is use plenty of wire, Leaving plenty of slack with give you future options and make moving and or adjusting things much easier.

    I bought mine all ready to go and the guy had wired everything pretty tight. So far I have broke 2-fuses as I filled my under deck compartment where the battery is. Addidng slck this time.

    Good Luck

    Avatar of Mudshark Mudshark
    Participant
    Posts: 2,163
    #868451

    Well… as long as we are on the subject I have a question also…
    I have a new 12 volt Minn Kota Edge.
    Would a 40 or 50 amp work just as well?
    The 60amp is $40….I can get a 50amp for $10

    avatar Hot Runr Guy
    Participant
    Posts: 436
    #868493

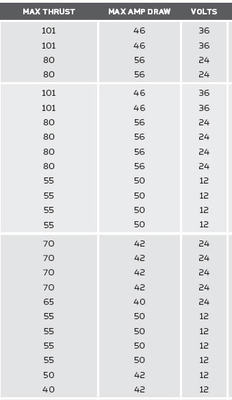

    Mudshark, here’s a Minn Kota amp draw chart, not sure what size TM you have. Looks like all the 12V units are at 50amp or less.
    HRG

    Avatar of Mudshark Mudshark
    Participant
    Posts: 2,163
    #868495

    Thanks Runr
    Just what I was looking for….
    Looks like I’m good to go with a 50amp for my 45lb….
